My Turbo 3.6 Project
#1
03-29-2009, 01:57 PM
My Turbo 3.6 Project
Guys and gals,

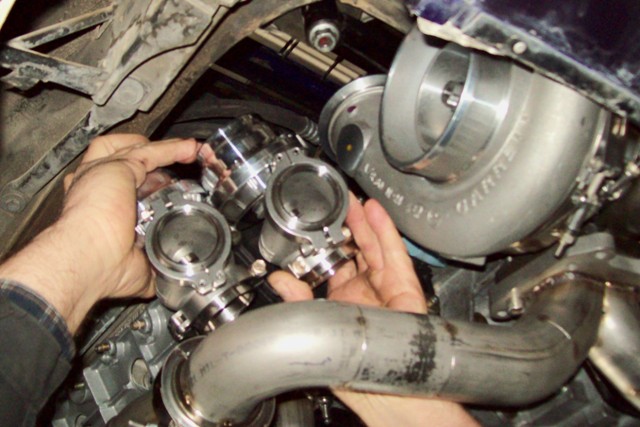

I would like to share some pictures of the fabrication being done for the custom headers, twin scroll turbocharger and twin wastegate setup.
I will try my best to get you more informative photo's and description once i have it.
The car is a 1994 Turbo 3.6 . Modifications are being done by Chris at TurboKraft.
Some of the specs:
* 3.6 TO 3.8 LITER CONVERSION
* CIS-TO-EFI CONVERSION PACKAGE

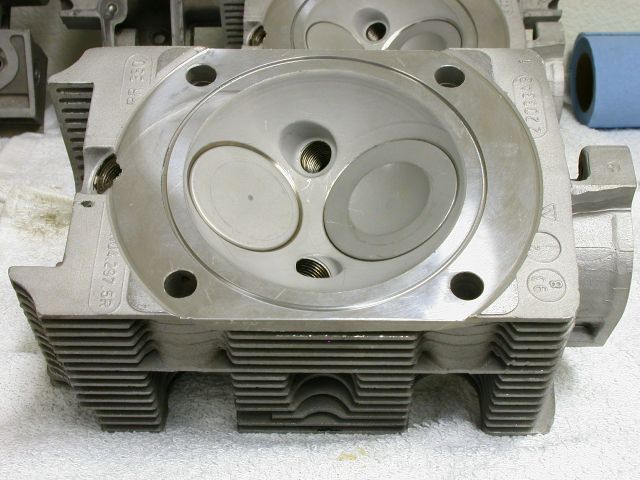

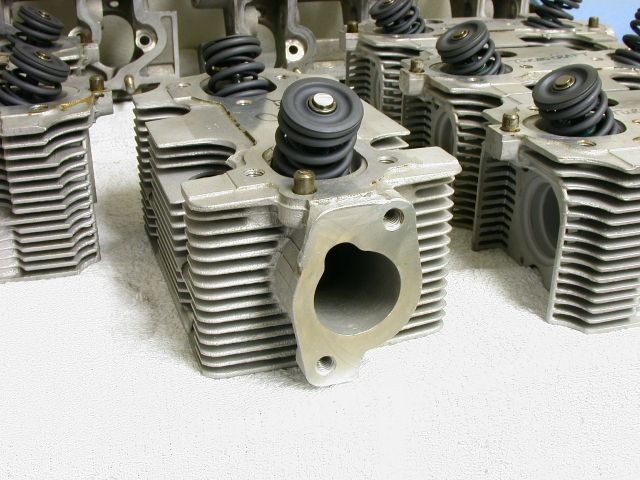

* COMPETITION VALVE JOB, SET OF 6, INCL. NEW VALVE GUIDES & NEW VITON SEALS

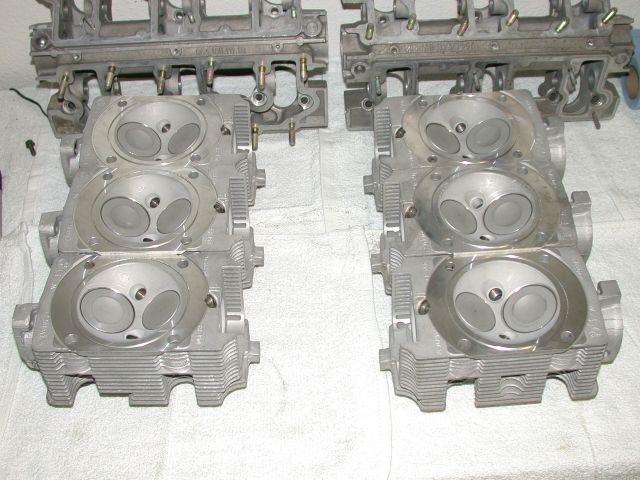

* EXTRUDE HONE 930 MAGNESIUM INTAKE MANIFOLD & FLOW BALANCE PERFORMANCE COAT CYLINDER HEADS,

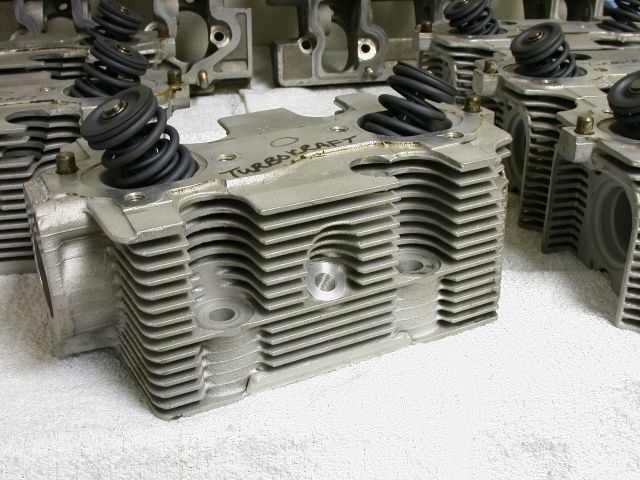

* MOTORSPORT VALVETRAIN: (8000 rpm)
* CUSTOM JE PISTONS

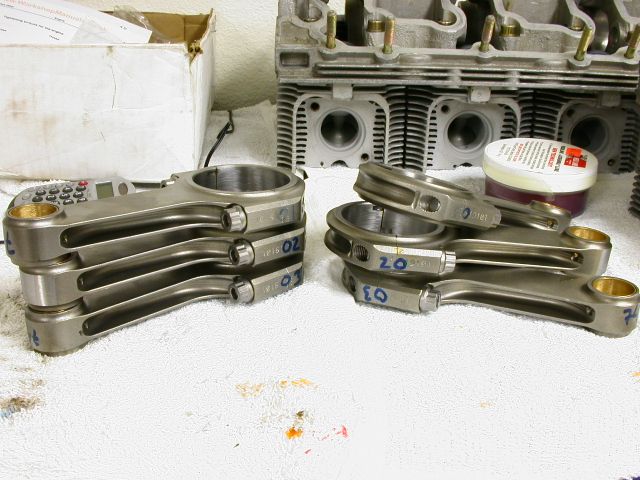

* CARRILLO CONNECTING RODS

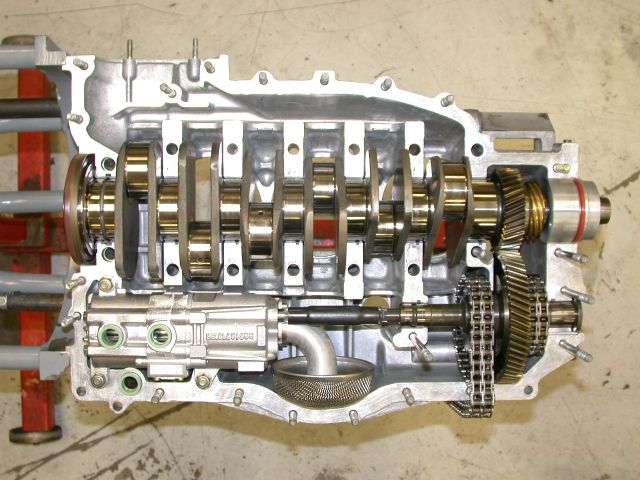

* 996 GT2/GT3RSR OIL PUMP
* TWIN PLUG IGNITION
* INDIVIDUAL THROTTLE BODIES

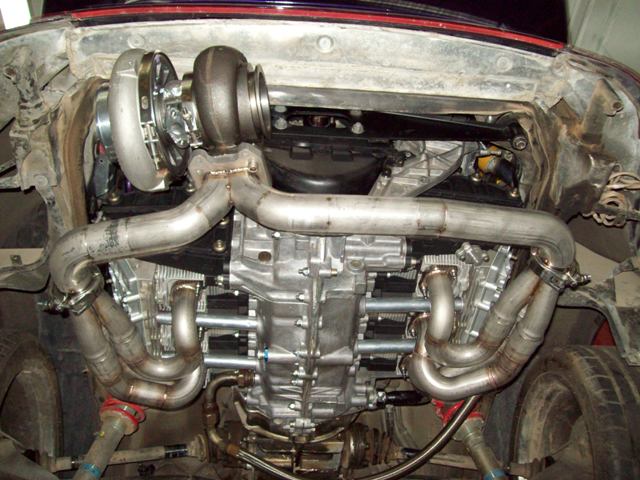

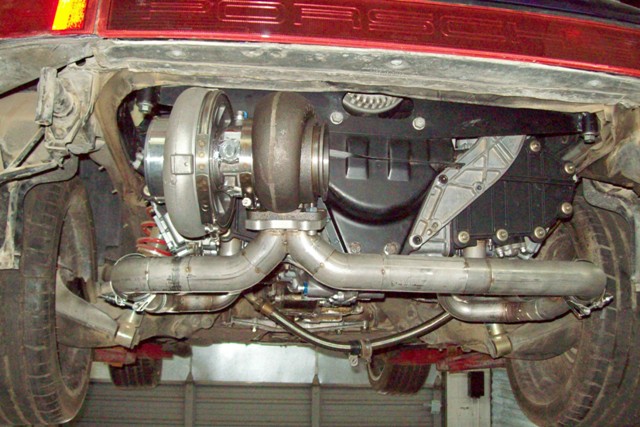

* CUSTOM HEADERS (see photo)
* CUSTOM MUFFLER (see photo)

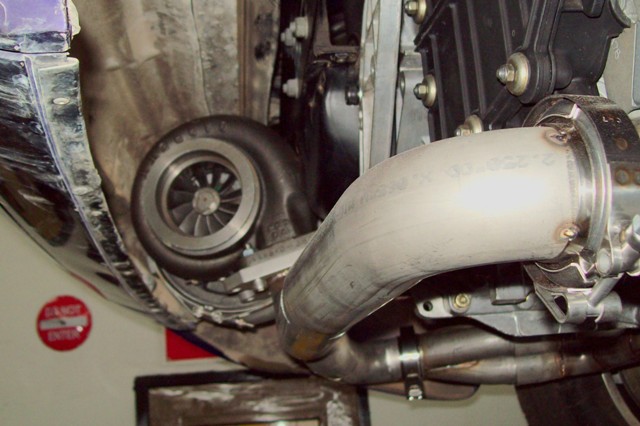

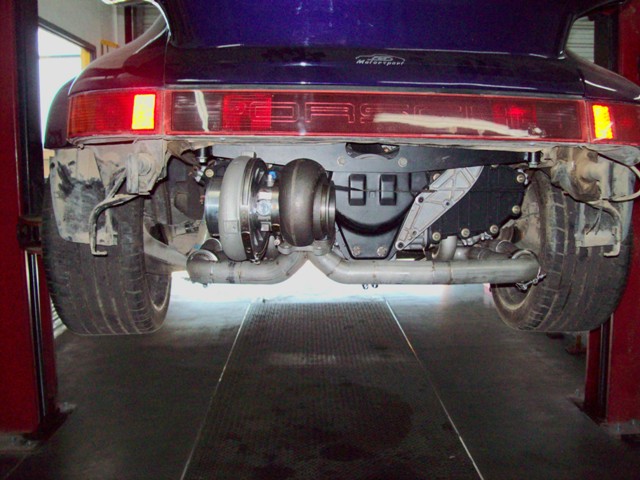

* CUSTOM TWIN SCROLL GARRETT TURBOCHARGER (see photo) [/SIZE]
I would like to share some pictures of the fabrication being done for the custom headers, twin scroll turbocharger and twin wastegate setup.
I will try my best to get you more informative photo's and description once i have it.
The car is a 1994 Turbo 3.6 . Modifications are being done by Chris at TurboKraft.
Some of the specs:
* 3.6 TO 3.8 LITER CONVERSION
* CIS-TO-EFI CONVERSION PACKAGE
* COMPETITION VALVE JOB, SET OF 6, INCL. NEW VALVE GUIDES & NEW VITON SEALS
* EXTRUDE HONE 930 MAGNESIUM INTAKE MANIFOLD & FLOW BALANCE PERFORMANCE COAT CYLINDER HEADS,
* MOTORSPORT VALVETRAIN: (8000 rpm)
* CUSTOM JE PISTONS
* CARRILLO CONNECTING RODS
* 996 GT2/GT3RSR OIL PUMP
* TWIN PLUG IGNITION
* INDIVIDUAL THROTTLE BODIES
* CUSTOM HEADERS (see photo)
* CUSTOM MUFFLER (see photo)
* CUSTOM TWIN SCROLL GARRETT TURBOCHARGER (see photo) [/SIZE]
. Looks great and that turbo looks HUGE!
#5
03-29-2009, 06:20 PM
Thanks for seeing me as your best friend.
Will keep you all posted for sure.
Will keep you all posted for sure.
#6
03-29-2009, 06:24 PM
Alzilla,
Won't anticipate until the numbers come out. I was looking into the neighborhood of 500+whp at the begining of the project. I can say that things have been evolving with time.
#10
04-04-2009, 01:06 AM
Great posts... I wonder what the spool-up is like with that big snail. Looks like you're using top-notch parts. Should be amazing when it's done!!
