Fellow TS'r

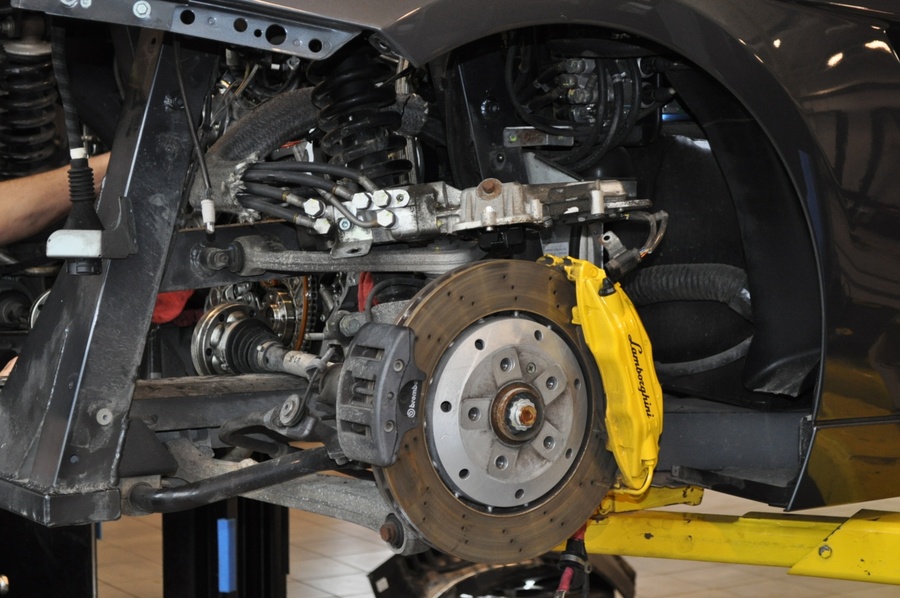

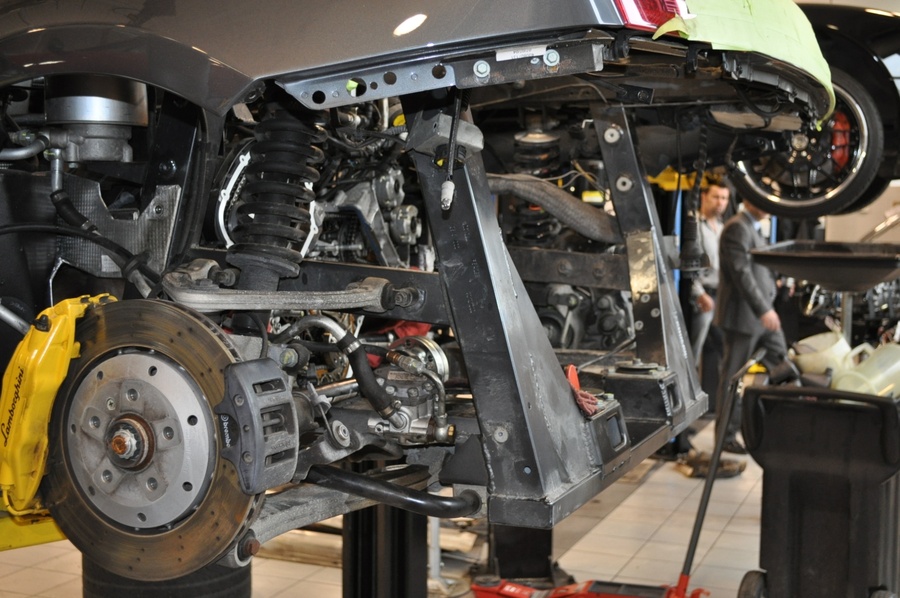

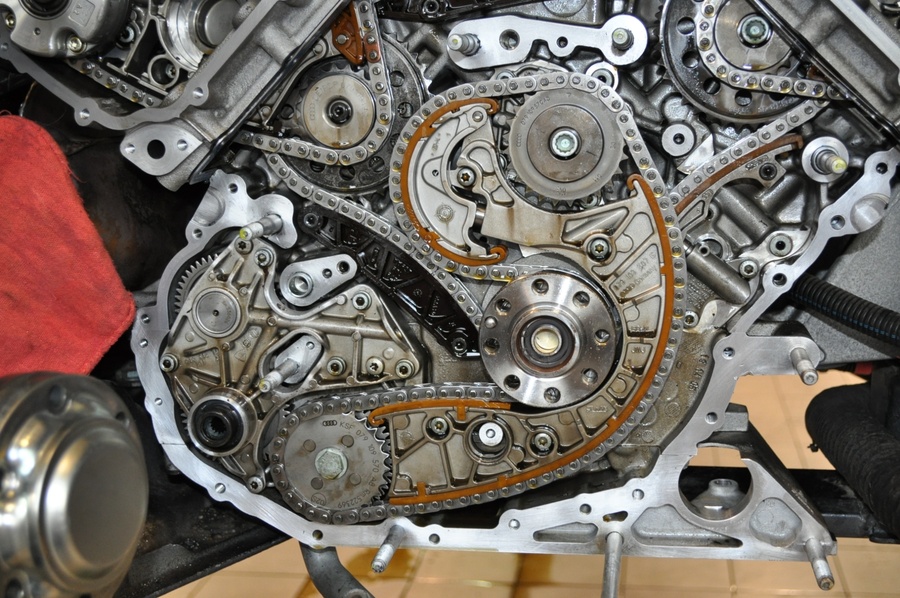

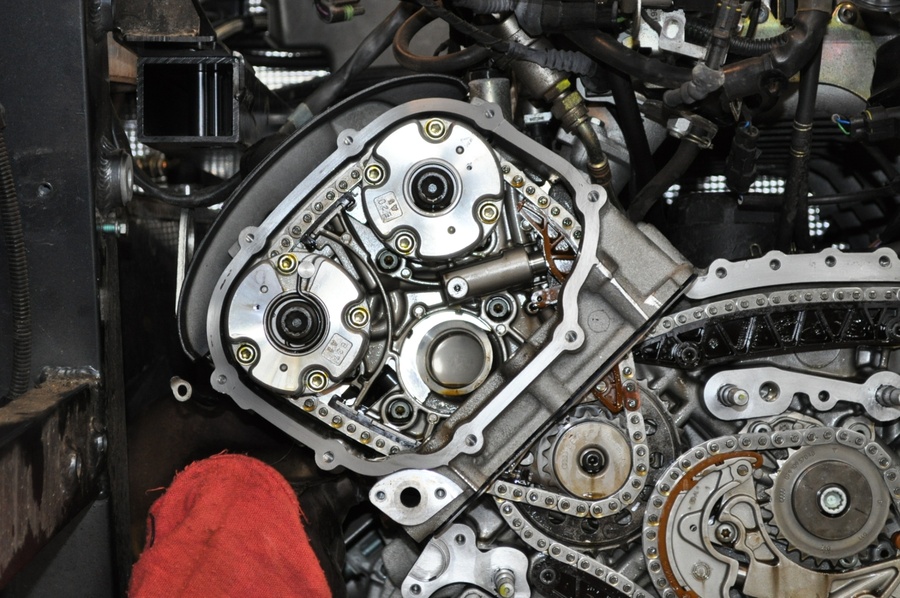

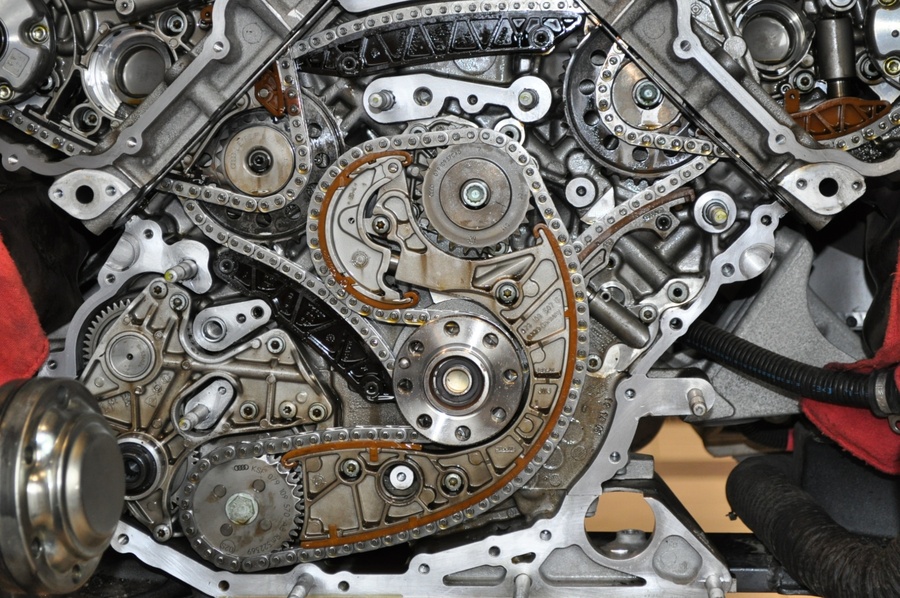

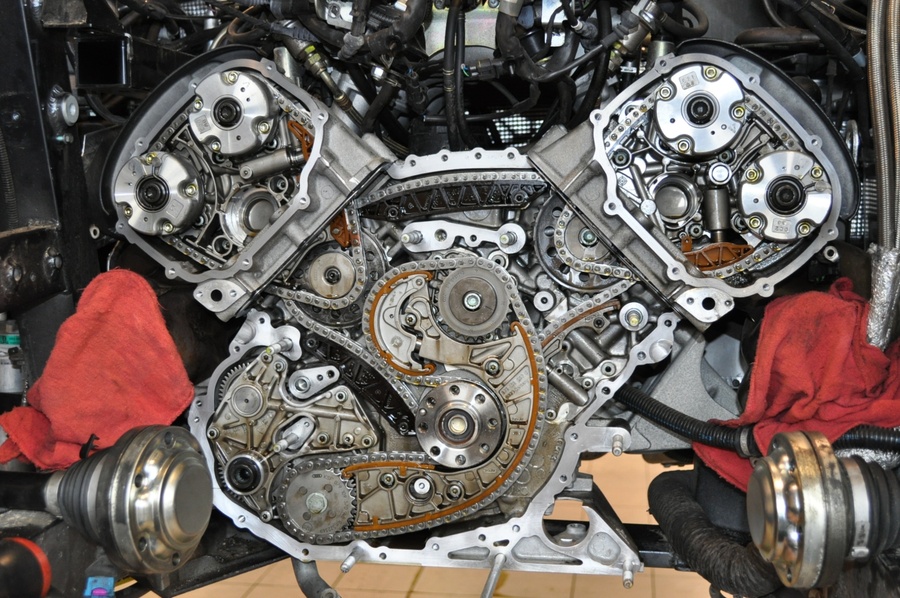

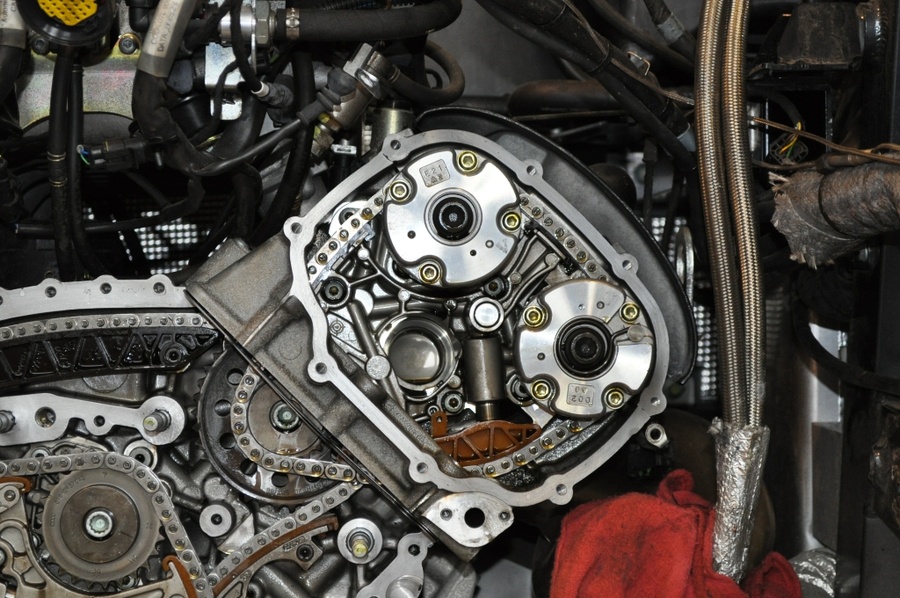

Just thought I would share this with you not to often you can see the complexity of the Chains that circle around the engine. We have this 06 Gallardo in our shop for some oil leaks, you basically have to take the rear end of the car apart to expose the 3 different covers. It is a 25hr job from start to finish and the nice thing is you get to see the Square Tube Frame that houses the V10 and the Transmission.

Enjoy!



Very cool! It's like looking at the insides of a mechanical watch.



very cool, thanks for sharing.

any high res versions? (specifically 2, 3, 9)



Exactly what I was thinking.



Could be an Audi with all those Audi stamped parts!!



Wow that looks crazy!



But isn't that precisely the reason why the new Lambos are a lot more reliable and cheaper to service?



Cars are complicated . . .



Interesting, have any more? Also in High res?
