Officially Official: The New Porsche 911 Carrera - Information and Picture Thread!

Reply Subscribe

Thread Tools

Search this Thread

#501

12-21-2011, 09:09 AM

Teamspeed Pro

Join Date: Jan 2008

Location: Zoo York

Posts: 31,554

Awesome Agate grey shots from auto-motor-und-sport.de

#502

12-21-2011, 09:10 AM

Teamspeed Pro

Join Date: Jan 2008

Location: Zoo York

Posts: 31,554

Few more:

#503

12-21-2011, 09:24 AM

dallascajun

Teamspeed Senior Member

Join Date: May 2010

Location: Dallas

Posts: 601

dallascajun You are a Teamspeed member that Rocks!

Quote:

Originally Posted by DJ

Nice view under the skirt.

This must be the PSE version. I see 4...count them: FOUR...mufflers, with a x-pipe type of config. Will be interesting to see if a 'center-bypass' option will work or get better sound. It also looks like the PSE valves are placed just ahead of the X-Pipe (in-between the center mufflers).

#504

12-21-2011, 04:13 PM

Milanno

Teamspeed Senior Member

Join Date: Jan 2011

Posts: 997

My new wallpeper

Photo in ultra high resolution: http://farm8.staticflickr.com/7145/6...68d5ccf7_o.jpg

#505

12-21-2011, 05:21 PM

12:03

Teamspeed Member

Join Date: Sep 2007

Location: Treasure Valley

Posts: 202

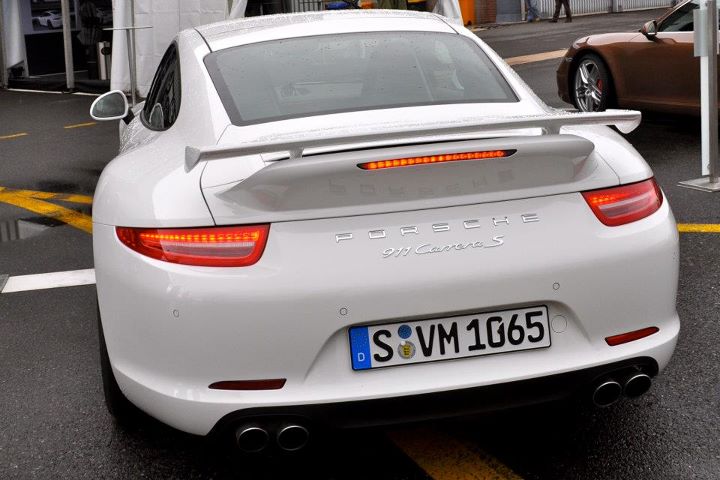

wtf is with the pipes here? why do the inside pipe on each side have a resonator looking thing?

#506

12-21-2011, 06:12 PM

dallascajun

Teamspeed Senior Member

Join Date: May 2010

Location: Dallas

Posts: 601

Quote:

Originally Posted by 12:03

wtf is with the pipes here? why do the inside pipe on each side have a resonator looking thing?

Take a close look. It appears the PSE setup has one exhaust tip (per side) coming directly out of the side muffler and another tip being fed from the center muffler/x-pipe. Apparently the exhaust tips aren't all 'fed' from the same source mufflers.
