Chassis Dyno Results - 376 RWHP - Gruppe-M Cold Air Intake - 91 Octane - USA (+10hp)

Thanks to member "Pencil" from m3forum for this, it is much appreciated!

YouTube - BMW E92 M3, Gruppe-M CAI, Interior Sound Check

YouTube - BMW E92 M3 with Gruppe-M Cold Air Intake

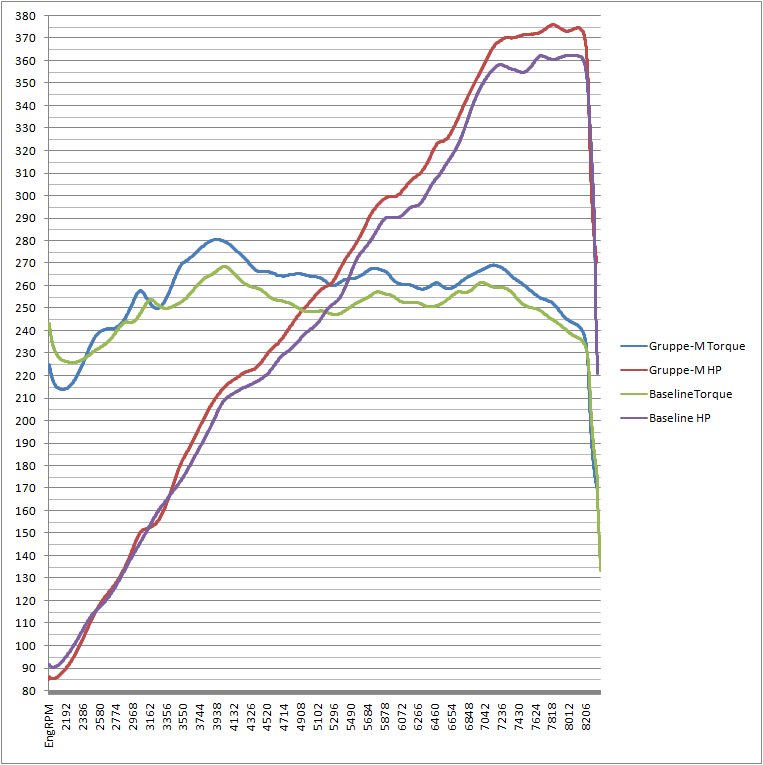

"Here's the dyno results for 2008 BMW M3 and Gruppe-M Cold Air Intake on 91 octane gas. The baseline is the same motor with Evo Sport Power Pulley.

The Dyno: Dynapack 4000 Chassis Dyno (wheel hub attachment).
RPM Range: 2000-8400
Max Torque: 280.7 ft/lbs @ @ 3933 RPM (Run-1)
Max HP: 376.3 @ 7830 RPM (Run-1) - +10hp Gain

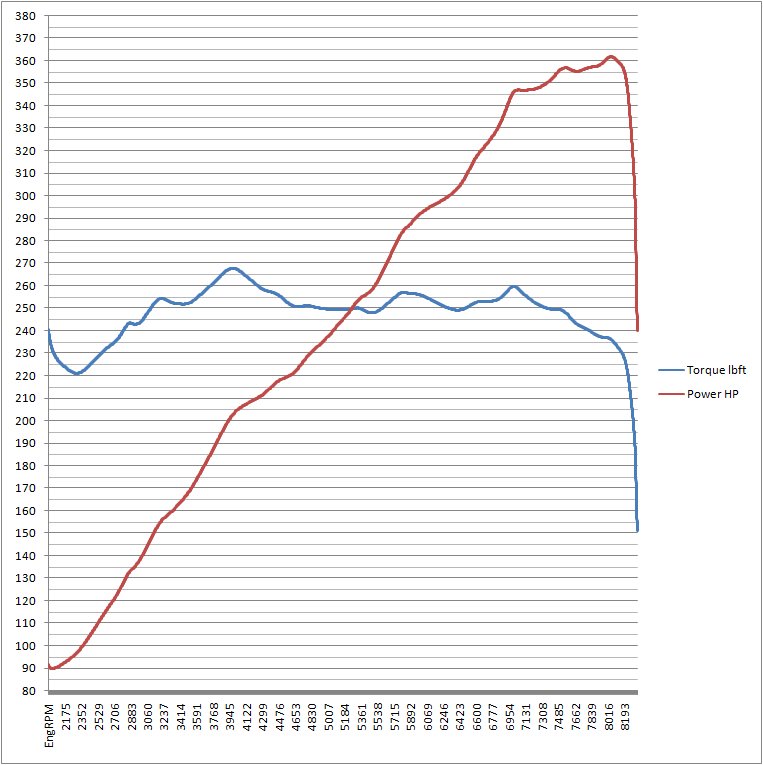

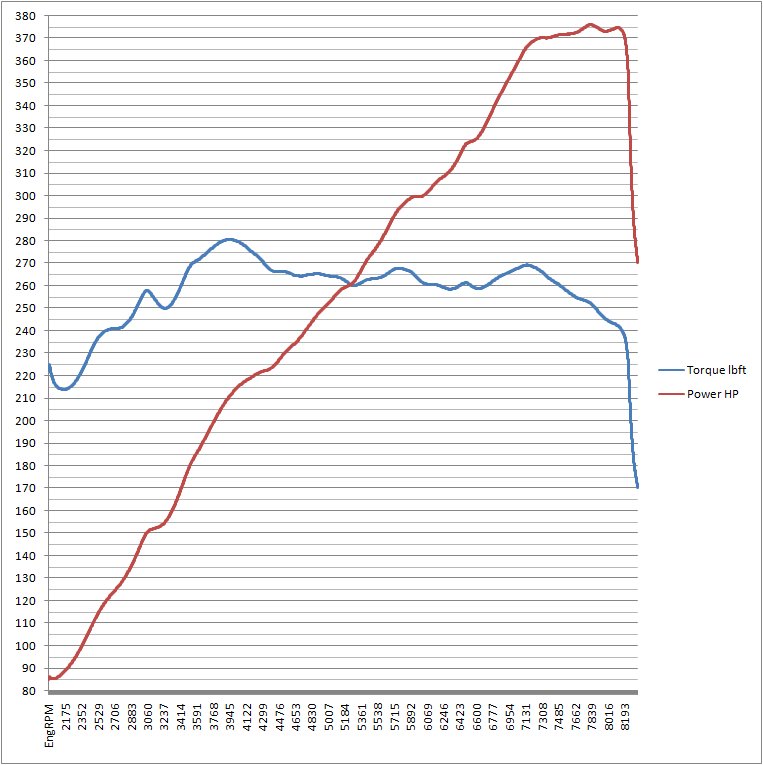

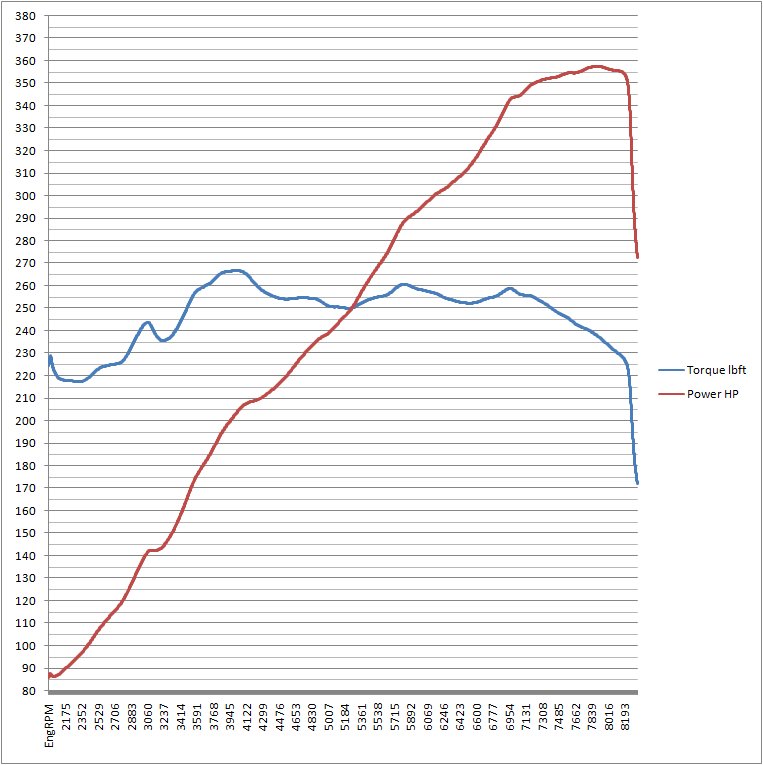

Other graphs: Run-1, Run-2, Run-3

Instructions for downloading and viewing the raw data:
See instructions below."

Gruppe-M Cold Air Intake

Last edited by Driver007; 08-18-2008 at 08:54 AM.

08-18-2008, 08:52 AM

Driver007

Teamspeed Senior Member

Thread Starter

Join Date: Feb 2008

Location: NC

Posts: 443

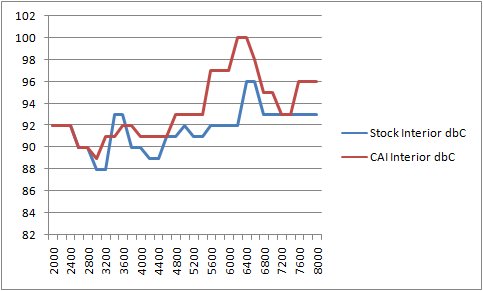

SPL vs. RPM (Stock vs. Gruppe-M CAI)

Notes:
* Ramp time: 2.5 seconds per 1000 RPMs.
* Gear Ratio: 3rd gear.
* Fuel: 91 Octane Unleaded (R+M/2)
* Traction Control: Disabled
* Onboard electronics and running lights: Disabled
* Air Conditioner: Disabled

Instructions for downloading and viewing the raw dyno data.
* Download and install the dyno data viewer.
* Download PencilGeek's dyno data file here.
* Run the Dynapack Viewer.
* Press <F8> (Folders). I don't think the function keys actually work here, so place the mouse over the <F8> key on the screen and left click.
* Press the "Import Files" button.
* Locate the file you downloaded and saved on your computer. Highlight it, and click "Add" then "OK"
* Select the "Vehicle Folder" on the left of your screen where you just imported the dyno results. On my system, it was in my TEMP directory, so the folder name is "TEMP"
* Double Click on "PencilGeekDyno-2008-05-08." When the "Load Data" dialog box is displayed, select "Source"
* When promted to overwrite the current vehicle setup, select "YES"
* When the dyno chart is first displayed, you'll want to change a few settings (if they are not already set). Select Setup->System. Look under the "Power Correction Standard." Change the Standard to "SAE (adapted)" setting.
* In the "Units" area, select your preferred HP/TQ, PS/KW/NM settings -- according to how prefer to view this data.
* Makes sure the "Correct Torque with Power Correction" checkbox is checked (bottom right of screen)
* Press F10 -- OK
* Change the display: Display->Flywheel Torque Graph.
* Look at the various other display graphs as well.
-- Temperature Graph
-- Statistics
-- View Data. You can add/delete data columns on this display. You can also look at the individual data for each dyno run by changing the "Data source. You can also export the data from this screen into a spreadsheet.
* Play with the software and you'll probably prefer it to a spreadsheet.
* Export the data if you wish into a spreadsheet, and make your own graphs.

To compare dyno charts using the Dynapack viewer:
* Follow all of the instructions above to load the dynapack data file.
* Download the Evo Sport baseline, or 91 Octane baseline data file. Save it in the same location as above.
* Click Display->Status & Relative Graphs (or press the 'Home' key on your keyboard)
* Press <F8> (Folders). I don't think the function keys actually work here, so place the mouse over the <F8> key on the screen and left click.
* Press the "Import Files" button.
* Locate the file you downloaded and saved on your computer. Highlight it, and click "Add" then "OK"
* Select the "Vehicle Folder" on the left of your screen where you just imported the dyno results. On my system, it was in my TEMP directory, so the folder name is "TEMP"
* Double Click on "PencilGeekDyno-2008-08-16, Power Pulley" or "PencilGeekDyno-2008-08-16, 91 Octane Baseline." When the "Load Data" dialog box is displayed, select "Comparison"
* When promted to overwrite the current vehicle setup, select "NO"
* Continue following the instructions above for viewing the dyno data.
