WORLD PREMIERE: NEW Champion Motorsport VTG Turbochargers
#1
03-01-2010, 05:17 PM
Join Date: Jan 2008
Location: Pompano Beach, FL
Posts: 38
WORLD PREMIERE: NEW Champion Motorsport VTG Turbochargers
Champion Motorsport would like to introduce our new 997 VTG Turbocharger, that has been in design and engineering for over a year now.
Features of this new turbocharger include: A new for 2010, Billet 65mm, 7 blade compressor wheel. This compressor wheel is an evolution of our very popular and reliable 63.5mm, 6 blade billet compressor upgrade that was available on re-machined standard cast housings. Another feature of this new Champion Motorsport turbocharger upgrade is the re-machining or "clipping" of the exhaust turbine. This feature allows an increase in turbine flow to properly match the revised sizing of the new compressor. All of these features, put together, allow VTG functions to remain precise, while allowing all of the benefits of some of the "NON-VTG" aftermarket conversions.
For this new 65mm compressor upgrade, you will receive a pair of brand new CNC Machined billet compressor housings, fit to the standard Porsche VTG Cartridges (CHRA's) and Turbine housings. Compressor upgrades are available for 997.1 and 997.2 (non compressor mounted blow off valve) Twin Turbo models. This upgrade is done on a core exchange basis only. We have cores in stock and turn around time is very short.
Contact Champion Motorsport directly to inquire about our complete upgrade packages for 2007 - 2010 997 Twin Turbo cars..
Stay Tuned for dyno testing results on both 997.1 and 997.2 cars with complete CMS upgrade packages.
Call: 800.775.2456 / 954.946.2136
email: sales@championmotorsport.com
technical@championmotorsport.com

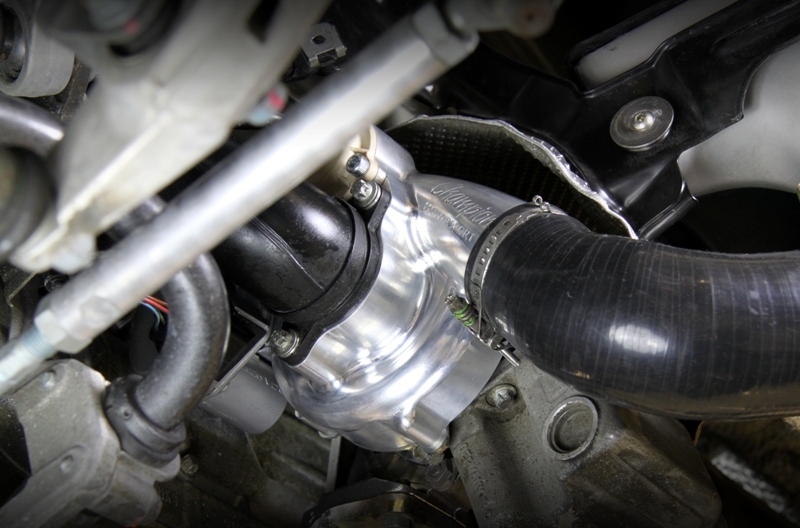

Images below features our turbochargers for the 997.1 TT model.
Features of this new turbocharger include: A new for 2010, Billet 65mm, 7 blade compressor wheel. This compressor wheel is an evolution of our very popular and reliable 63.5mm, 6 blade billet compressor upgrade that was available on re-machined standard cast housings. Another feature of this new Champion Motorsport turbocharger upgrade is the re-machining or "clipping" of the exhaust turbine. This feature allows an increase in turbine flow to properly match the revised sizing of the new compressor. All of these features, put together, allow VTG functions to remain precise, while allowing all of the benefits of some of the "NON-VTG" aftermarket conversions.
For this new 65mm compressor upgrade, you will receive a pair of brand new CNC Machined billet compressor housings, fit to the standard Porsche VTG Cartridges (CHRA's) and Turbine housings. Compressor upgrades are available for 997.1 and 997.2 (non compressor mounted blow off valve) Twin Turbo models. This upgrade is done on a core exchange basis only. We have cores in stock and turn around time is very short.
Contact Champion Motorsport directly to inquire about our complete upgrade packages for 2007 - 2010 997 Twin Turbo cars..
Stay Tuned for dyno testing results on both 997.1 and 997.2 cars with complete CMS upgrade packages.
Call: 800.775.2456 / 954.946.2136
email: sales@championmotorsport.com
technical@championmotorsport.com
Images below features our turbochargers for the 997.1 TT model.
#7
03-03-2010, 06:19 PM
Greetings,
I have some information to share on our new CNC Machined Billet VTG Turbocharger.
The Standard Porsche 997.1 VTG Turbocharger has a 6 blade compressor wheel with a 60mm exducer, and 43.8mm inducer with an inlet bore of 45mm.
We previously offered a Generation 1 turbocharger upgrade which utilized a billet CNC 6 blade wheel. This 6 blade wheel has a 63.5mm exducer, and a 45.8mm inducer, with a 46.75mm ID bore size. This turbocharger produced great results for us with power potential between 550 and upper 600's depending on the specific tuning and other associated parts.
The New Billet turbocharger has been sized and engineered to continue to take full advantage of the VTG system, correct the flow issues that are encountered by increasing the compressor wheel in the small standard housing, and offer a larger window for power potential. Any tuner can take advantage of these units in their own kits, but Champion Motorsport will offer our completed tested and tuned power kit which will incorporate Software, intercoolers, air box, etc.. The compressor wheel sizing for these new units is as follows: Exducer: 65mm, Inducer: 46.9mm, with inlet bore size of 48mm.
We are also very deep in the development of our new turbocharger for the 997.2 2010 Twin Turbo, prototypes are already being tested, and it will use an even more radical compressor wheel, stay tuned, as we will release details of the dyno tuning and the completed kits here very soon.
All of our kits from here forward are built around our "new for 2010" Champion Motorsport intercooler package. With CFD designed cast aluminum end tanks, which we are proud to say are made in America. These end tanks are welded to a new proprietary intercooler core. This core is bar and plate construction, but the turbulator density both internally and externally has been maximized for this specific application. The newest intercoolers have been both flow bench tested against the CMS Bell Core versions, the OEM 2009 and earlier versions as well as the OEM 2010 intercoolers. The 2010 CMS intercoolers come out on top of all testing so far. We also have done a vast array of thermal efficiency testing, and on a 997.1 TT running 2450mb boost we have seen over a 30 Degree Celsius drop in plenum temperature!! I personally logged data today on the test car and the AT sensor in the front bumper was showing 65F Ambient temperature, and under full load at 2450mb boost we logged 73F in the Y-pipe!! ZERO knock control activation !! Enough on the Intercoolers for now. Stay tuned tomorrow, and I will post some photos to this thread.
All of our new products for 2010 are extensively tested. The 2 cars that we are working with right now, are outfitted with data logging and testing kits for generating data necessary to optimize these products, while maximizing reliability. We measure compressor inlet depression, pre and post turbine pressure, along with a dozen or so other useful sensors.
we are also in the process of building Carbon turbocharger inlet pipes for both the 997.1 and .2 twin turbo cars. Much of our recent testing has been done specifically to study and determine the need for these parts. With modified standard inlet pipes on a 997.1 TT we can achieve less than 4 inches of vacuum at the compressor inlet with our billet charger at 2450mb boost pressure, this is a fair number, but can be better and we intend to achieve it with a bolt on set of Werks 1 Carbon inlet tubes.

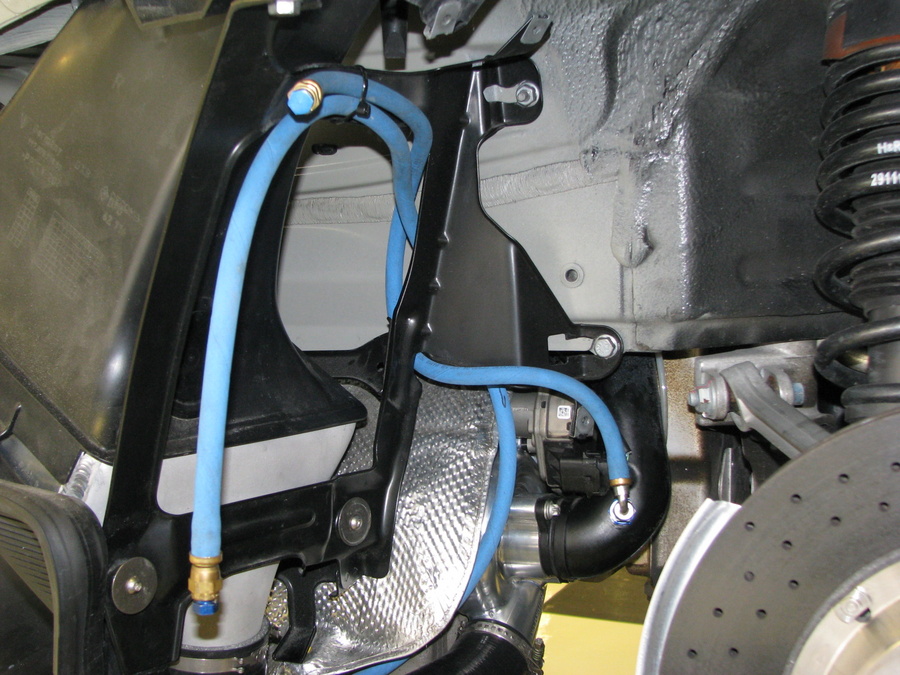

A few photos of the test car..
Thanks for the interest..
Louis Milone
Technical Director
Champion Motorsport
I have some information to share on our new CNC Machined Billet VTG Turbocharger.
The Standard Porsche 997.1 VTG Turbocharger has a 6 blade compressor wheel with a 60mm exducer, and 43.8mm inducer with an inlet bore of 45mm.
We previously offered a Generation 1 turbocharger upgrade which utilized a billet CNC 6 blade wheel. This 6 blade wheel has a 63.5mm exducer, and a 45.8mm inducer, with a 46.75mm ID bore size. This turbocharger produced great results for us with power potential between 550 and upper 600's depending on the specific tuning and other associated parts.
The New Billet turbocharger has been sized and engineered to continue to take full advantage of the VTG system, correct the flow issues that are encountered by increasing the compressor wheel in the small standard housing, and offer a larger window for power potential. Any tuner can take advantage of these units in their own kits, but Champion Motorsport will offer our completed tested and tuned power kit which will incorporate Software, intercoolers, air box, etc.. The compressor wheel sizing for these new units is as follows: Exducer: 65mm, Inducer: 46.9mm, with inlet bore size of 48mm.
We are also very deep in the development of our new turbocharger for the 997.2 2010 Twin Turbo, prototypes are already being tested, and it will use an even more radical compressor wheel, stay tuned, as we will release details of the dyno tuning and the completed kits here very soon.
All of our kits from here forward are built around our "new for 2010" Champion Motorsport intercooler package. With CFD designed cast aluminum end tanks, which we are proud to say are made in America. These end tanks are welded to a new proprietary intercooler core. This core is bar and plate construction, but the turbulator density both internally and externally has been maximized for this specific application. The newest intercoolers have been both flow bench tested against the CMS Bell Core versions, the OEM 2009 and earlier versions as well as the OEM 2010 intercoolers. The 2010 CMS intercoolers come out on top of all testing so far. We also have done a vast array of thermal efficiency testing, and on a 997.1 TT running 2450mb boost we have seen over a 30 Degree Celsius drop in plenum temperature!! I personally logged data today on the test car and the AT sensor in the front bumper was showing 65F Ambient temperature, and under full load at 2450mb boost we logged 73F in the Y-pipe!! ZERO knock control activation !! Enough on the Intercoolers for now. Stay tuned tomorrow, and I will post some photos to this thread.
All of our new products for 2010 are extensively tested. The 2 cars that we are working with right now, are outfitted with data logging and testing kits for generating data necessary to optimize these products, while maximizing reliability. We measure compressor inlet depression, pre and post turbine pressure, along with a dozen or so other useful sensors.
we are also in the process of building Carbon turbocharger inlet pipes for both the 997.1 and .2 twin turbo cars. Much of our recent testing has been done specifically to study and determine the need for these parts. With modified standard inlet pipes on a 997.1 TT we can achieve less than 4 inches of vacuum at the compressor inlet with our billet charger at 2450mb boost pressure, this is a fair number, but can be better and we intend to achieve it with a bolt on set of Werks 1 Carbon inlet tubes.
A few photos of the test car..
Thanks for the interest..
Louis Milone
Technical Director
Champion Motorsport
