MP4-12C under the vehicle

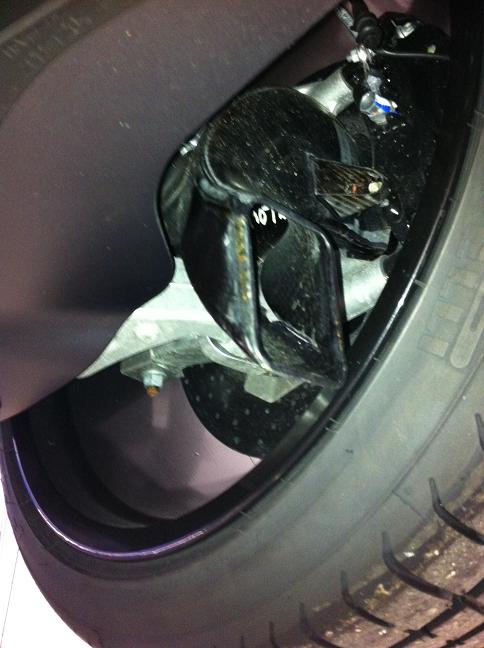

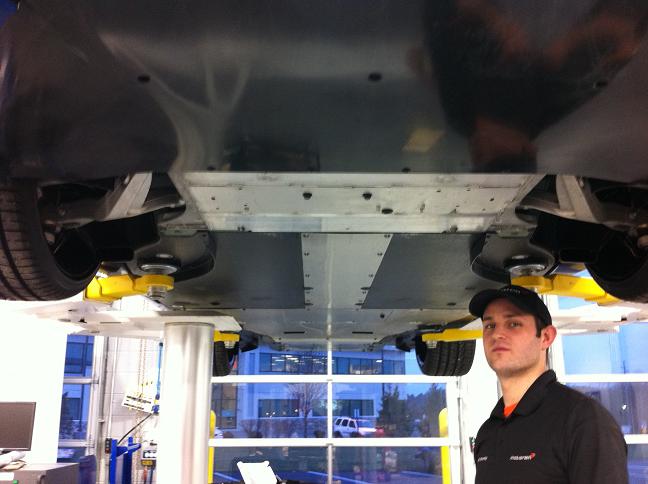

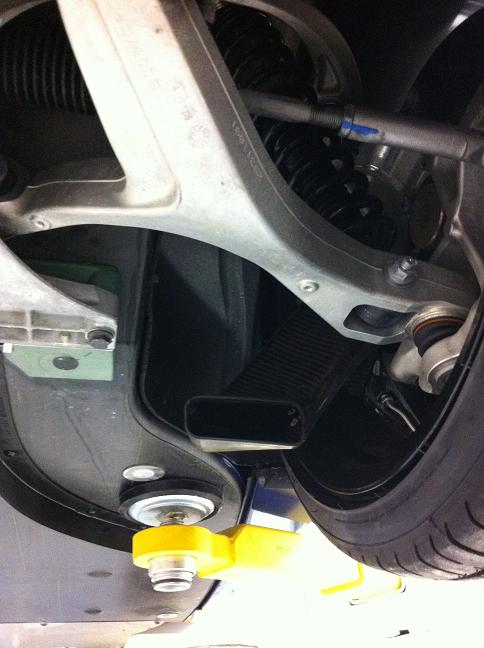

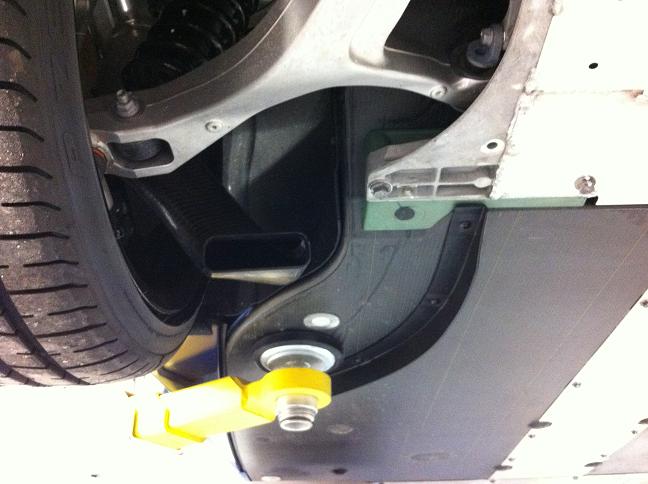

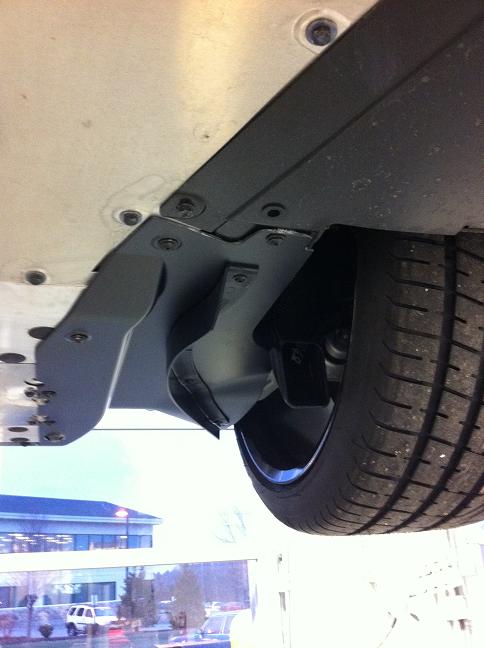

Myself and Matt Gramling at McLaren Philadelphia were trying to think of something unusual to post in the McLaren Forum. So far we've come up with some underbody photo's. You really can't appreciate this vehicle until you see how well crafted this machine is, even down to the cf duct work of the optional Ceramic Carbon Brakes. Enjoy!

Attached Images

01-12-2012, 10:32 PM

Moving Chicane

Teamspeed Senior Member

Join Date: Apr 2011

Location: SoCal.

Posts: 315

Nice, and Thank you!

Hopefully that brake "air channel/deflector" is more robust than Porsche used on the GT3's! I went through a few of those! LOL!

Last edited by Moving Chicane; 01-12-2012 at 10:36 PM.

01-13-2012, 12:19 AM

falb

Teamspeed Senior Member

Join Date: Jul 2010

Location: Las Vegas

Posts: 523

Thanks for showing those. Very interesting features. I love how flat and smooth the underside is. Do the iron brakes have those vents?

01-13-2012, 10:19 AM

ANDYC

Teamspeed Member

Join Date: Dec 2011

Posts: 113

ANDYC You are a Teamspeed member that Rocks and Rolls!

Quote:

Originally Posted by falb

Thanks for showing those. Very interesting features. I love how flat and smooth the underside is. Do the iron brakes have those vents?

Just nearly broke my back looking falb!!! I was sure that one of the reasons that the unsprung weight of the iron brakes was that they dont require the additional cooling of the ceramics,looks to me like there are no significant cooling vents for them,but really need to get it on a ramp to be sure.Or i could just feel,but they are a bit hot at the moment
